Feature Description

● 90A switching capability
● Single coil and double coils are available
● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● Breakdown voltage (between contact and coil):4KV
● Meet standard of IEC62055-31:2005 UC2
● Environment-friendly product(RoHS compliant)

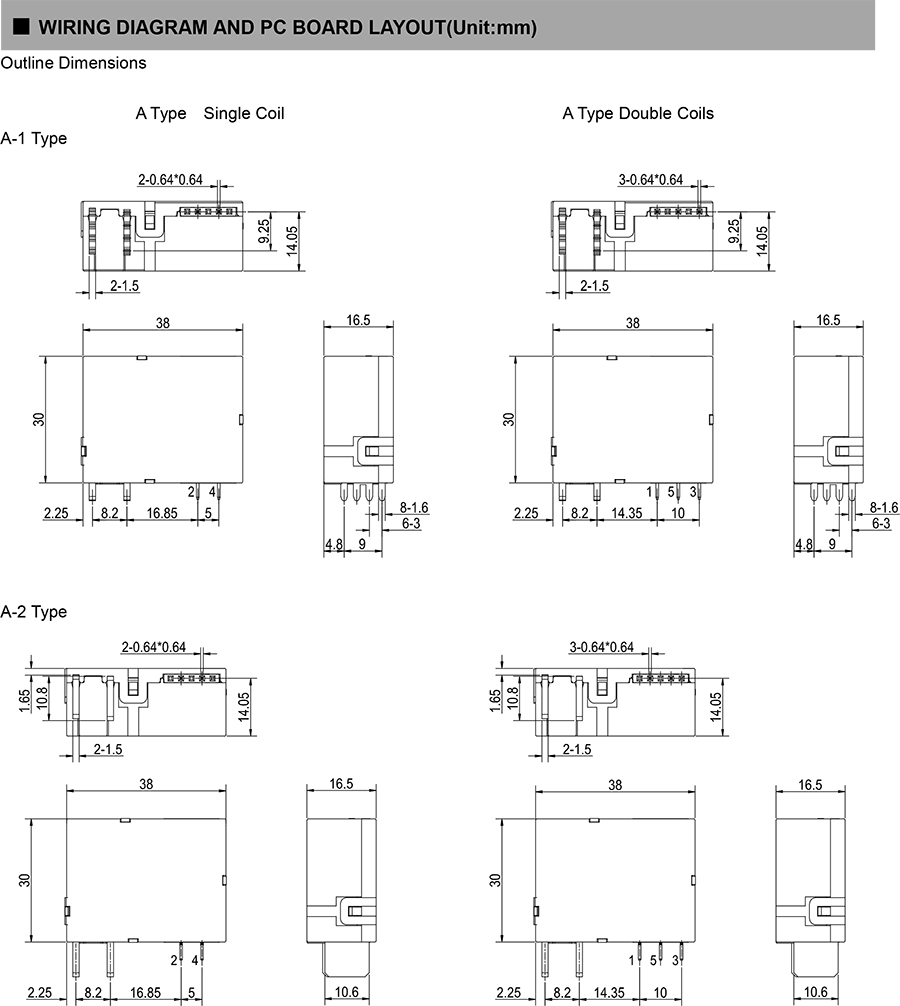

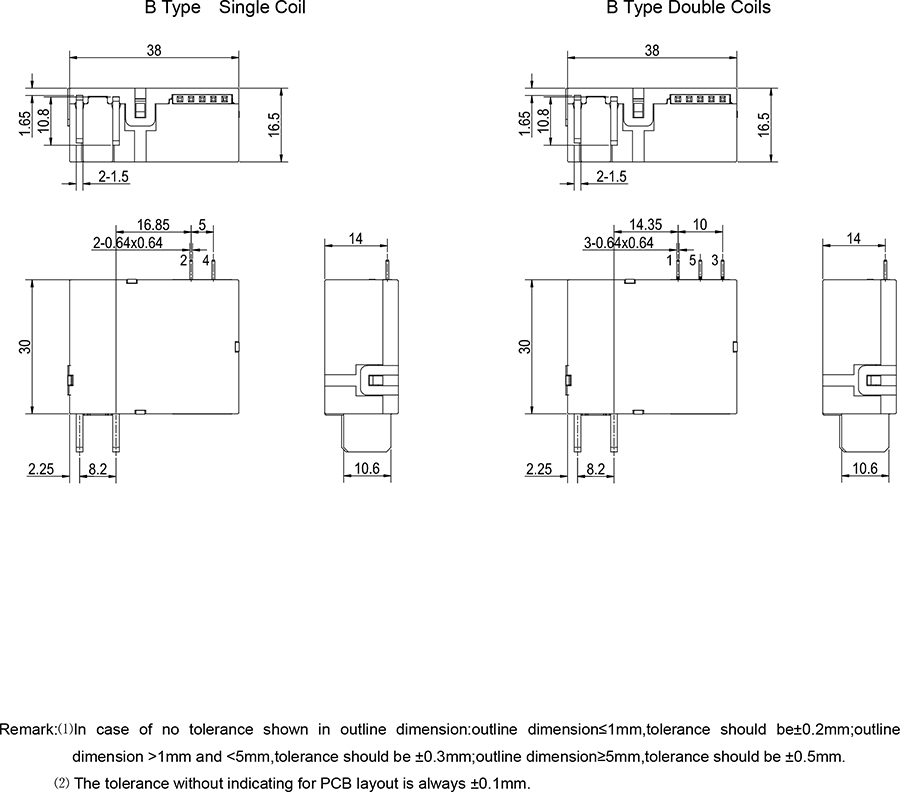

● Outline Dimensions:(38.1×30.0×16.5)mm
● Can be integrated design, convenient automatic installation and production
● Power frequency interference resistance, and good consistency
● Main application: smart meter, compound switch, new energy
